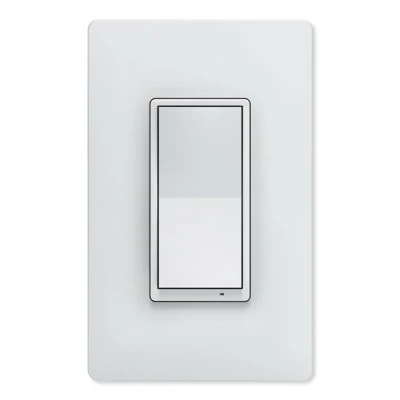

Aeotec Z-Wave Plus Illumino WallMote 7

Install a Z-Wave Switch Anywhere Indoors

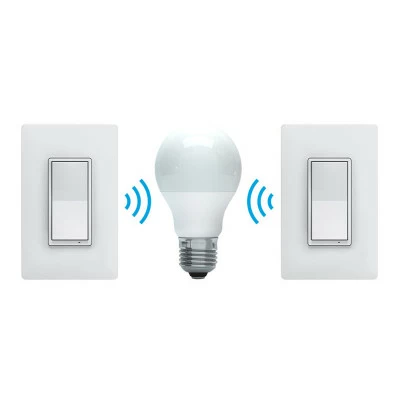

Add a new Z-Wave 700 switch anywhere in your home with the Aeotec illumino WallMote 7. This battery powered remote control Z-Wave 700 switch is designed to look and behave as a standard wall switch but with the benefits of a wireless remote controller. The WallMote 7 is capable of controlling virtually any Z-Wave device in your network via its Multi-tap functionality, issuing On/Off controls to lights and appliances, Dim/Brighten commands to dimmable lights, and activating/deactivating pre-programmed scenes. If your Z-Wave hub/gateway is capable of controlling other wireless devices such as Wi-Fi or Zigbee connected devices, the WallMote 7 can control those devices as well.

• Wireless Z-Wave 700 switch commands Z-Wave devices and scenes
• Capable of commanding non- Z-Wave devices if compatible hub/gateway controls multiple wireless communication protocols
• 6 Multi-tap button presses allow for On/Off, Dim/Brighten, and Scene Activation commands
• Can be surface mounted anywhere with double sided tape, installed in a standard junction box, or used as a handheld remote
• Line of sight wireless range up to 144ft (35m) indoors or 394ft (120m) outdoors
• S2 encryption and SmartStart software make for fast and secure inclusion into your network
• Compatible with Decora Smart wallplates

Installation Details

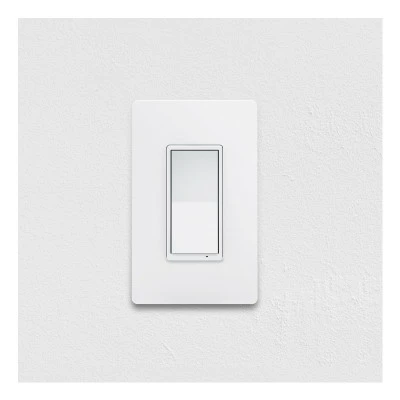

The WallMote 7 can be installed on any wall as a surface mount switch, placed into a standard 1-gang junction box, or used as a handheld remote control.

When surface mounted onto any wall, use the included double-sided tape, screw plate, screws and snap-on faceplate. The WallMote 7 magnetically affixes to the screw plate.

When installed into a wall box, use the included wall plate, screw plate, screws, and snap-on faceplate. The WallMote 7 magnetically affixes to the screw plate.

Z-Wave 700 Series / Z-Wave Plus v2 Certification

Z-Wave 700 is an upgraded Z-Wave certification program to help you identify products that take advantage of the latest Z-Wave hardware platform, also known as 700 Series, Gen7 Z-Wave, or Z-Wave Plus v2. Z-Wave 700 compatible devices include extended wireless range up to 2600 ft/800 m, three layers of encryption, faster operation, and longer battery life.

Contents

• illumino WallMote 7
• Wall Plate
• Screw Plate
• Face Plate
• (2) Long Screws
• (2) Short Screws
• Double-Sided Adhesive Tape
