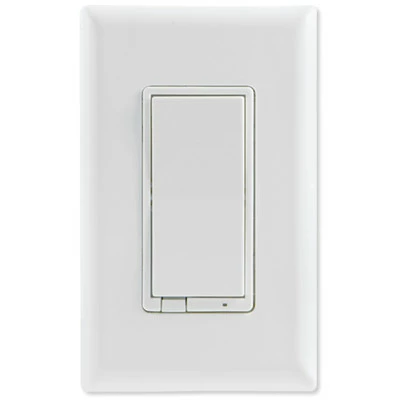

Enbrighten Z-Wave Plus Smart Switch With QuickFit And SimpleWire, Gen5 (Open Box)

Control Wired Light Fixtures & Devices With Z-Wave

The Enbrighten Z-Wave Plus Smart Switch with QuickFit and SimpleWire enables Z-Wave remote control and local control for a wired light or appliance. The rocker switch provides On/Off control, and can be included in multiple automation groups or scenes; plus, a blue LED indicator helps guide you to the switch through the dark.

• Works with incandescent, LED, xenon, halogen and fluorescent lighting
• Supports loads up to 960W, incandescent, 1/2 HP, or 1800W(15A) resistive
• Range up to 150 ft (line of sight) between the closest Z-wave receiver and wireless controller
• Suitable for single-pole or multi-pole applications
• Can be included in multiple groups or scenes
• “Z-Wave Plus” certified for wide compatibility
• Uses a standard decorative-size wallplate (sold separately)

Available Colors: White paddle installed. Light Almond paddle included.

The Enbrighten Z-Wave Plus Smart Switch is also designed with new QuickFit and SimpleWire features:

QuickFit: Provides a housing that’s smaller by 20% with no break-off tabs to remove, which is ideal for for older-style switch boxes, multi-gang configurations, or any other application with limited space.

SimpleWire: Auto-detects line/load terminals, making installation easier and quicker by detecting line and load wires and configuring the dimmer accordingly. It also features an offset dual ground terminal to avoid switch box mounting screws.

Installation Details

The Z-Wave Plus On/Off Wall Switch works with incandescent, LED, xenon, halogen and fluorescent lighting, as well as any on/off resistive load up to 1800W and motor loads to 1/2 HP. The switch supports single-pole or multi-pole applications, and works in conjunction with up to four add-on switches (requires the toggle or rocker-style Enbrighten Z-Wave Auxiliary Switch, sold separately). This model can also be included in multiple zones/scenes.

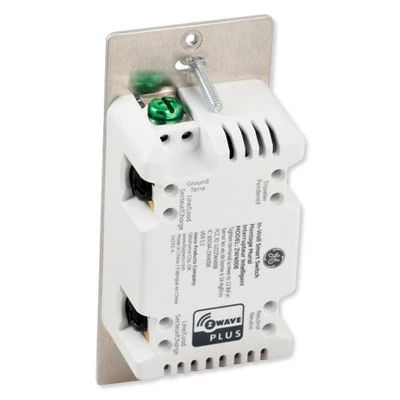

The switch requires standard screw terminal installation with wiring connections for Line (Hot), Load, Neutral, and Ground. Multi-pole installation also requires a traveler wire.

Z-Wave Plus Certification

Z-Wave Plus is an upgraded certification program to help you identify products that take advantage of the “Next Gen” Z-Wave hardware platform, also known as 500 Series or Gen5 Z-Wave. Z-Wave Plus certified solutions feature a selected set of extended features and capabilities that enhance your experience with faster and easier installation and setup. Z-Wave Plus advancements also provide longer battery life, faster operation, better wireless range and improved noise immunity.

Notes

• Requires a Z-Wave network controller.
• Wallplate not included. Uses standard single-gang wallplate. For indoor use only.
• The fixture controlled by the switch must not exceed 960 watts (Incandescent); 1800W (15A) Resistive or 1/2 HP Motor.
• The switch is designed only for use with permanently installed fixtures.
