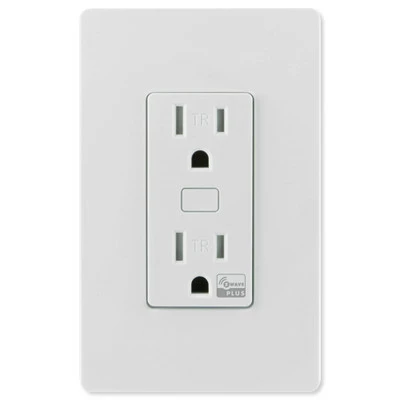

Enbrighten Z-Wave Plus Split Duplex Wall Receptacle, Tamper-Resistant, Gen5

Convert A Standard Outlet Into Z-Wave Surge Protected Outlet

Replace a standard outlet with a smart Z-Wave Plus connected outlet with the Enbrighten Z-Wave Plus Split Duplex Wall Receptacle, Tamper-Resistant, White. This smart outlet includes a pass-through “always on” top outlet and a Z-Wave Plus controlled bottom outlet, allowing nearly any low voltage plug-in device to be added into your automated network.

• One “always on” outlet, one Z-Wave Plus controlled outlet
• Local On/Off button on the outlet allows for manual control of the device
• Built-in LED indicates On/Off status and helps locate outlet in the dark
• Range up to 150 ft (line of sight) between the closest Z-Wave Plus receiver and wireless controller
• Tamper-resistant design prevents insertion of foreign objects

The receptacle uses your existing wiring for easy installation (neutral wire required). As a tamper-resistant receptacle, this model prevents foreign objects from being inserted into the electrical slots, providing built-in protection that is superior to conventional protection plates or outlet caps.

The Z-Wave Plus controlled outlet supports a plug-in incandescent lamp up to 960 Watts, motor loads up to 1/2 HP, or 1800W/15A resistive loads. The entire receptacle (both outlets) can handle a total load up to 1800W/15A.

Z-Wave Plus Certification

Z-Wave Plus is an upgraded certification program to help you identify products that take advantage of the “Next Gen” Z-Wave hardware platform, also known as 500 Series or Gen5 Z-Wave. Z-Wave Plus certified solutions feature a selected set of extended features and capabilities that enhance your experience with faster and easier installation and setup. Z-Wave Plus advancements also provide longer battery life, faster operation, better wireless range and improved noise immunity.

Notes

• For indoor use only.
• A neutral wire is required for installation.
• Wallplate sold separately. Uses standard single-gang wallplate.
