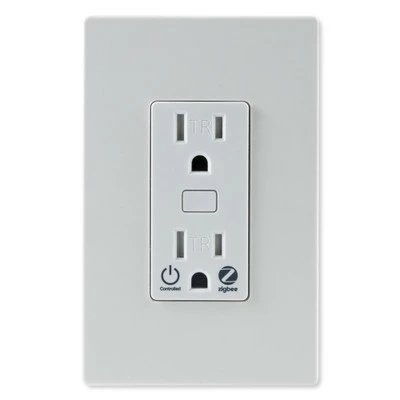

Jasco Zigbee 3.0 In-Wall Tamper Resistant Smart Outlet With Energy

Replace a Standard Outlet with a Zigbee Controlled Outlet

Add Zigbee remote control to any small plug-in device or lamp with the Jasco Zigbee 3.0 In-Wall Tamper Resistant Smart Outlet. This smart outlet includes a pass-through “always on” top outlet and a Zigbee controlled bottom outlet, allowing virtually any low voltage plug-in device to be included into your automated network. This outlet utilizes Zigbee 3.0 technology, which enables it to directly connect to Amazon Echo products for voice control commands without requiring a Zigbee hub. Non voice command automated functions still require a compatible Zigbee hub.

• One “always on” outlet, one Zigbee controlled outlet
• Capable of reporting energy usage with compatible hub
• Supports direct connection with Amazon Echo products without requiring a Zigbee compatible hub
• Range up to 150 ft (line of sight) between the closest Zigbee receiver and wireless controller
• Tamper-resistant design prevents insertion of foreign objects

The receptacle uses your existing wiring for easy installation (neutral wire required). As a tamper-resistant receptacle, this model prevents foreign objects from being inserted into the electrical slots, providing built-in protection that is superior to conventional protection plates or outlet caps.

The Zigbee controlled outlet supports a plug-in incandescent lamp up to 1000 Watts, LEDS and CFLS up to 3.75A, a motor load up to 1/2 HP, or 1800W/15A resistive load. The entire receptacle (both outlets) can handle a total load up to 1800W/15A.

Notes

• For indoor use only.
• A neutral wire is required for installation.
• Wallplate sold separately. Uses standard single-gang wallplate.
• Direct voice command control compatible only with select Amazon Echo products.
• A compatible Zigbee hub is required for non-voice controlled automated functions.
