Leviton Decora In-Wall Occupancy Sensor Switch, Auto-On, 5A, Single-Pole Or 3-Way

Turn On Lights and Devices When You Walk Into the Room

Incorporate reactive automated lighting in your home or business with the Leviton Decora Motion Sensor In-Wall Switch, Auto-On, 5A, Single Pole or 3-Way. This motion sensing switch automatically turns On/Off wired connected lights and small appliances when movement is detected within its operating range. Devices can also be manually turned On/Off by pressing the switch’s button. The In-Wall Switch can be installed in single pole or 3-way wiring applications.

• PIR occupancy sensor sends Auto ON/OFF controls to connected loads when movement is detected
• Supports 300W LEDs & CFLs, 600W Incandescents & Halogens lights
• Supports 400VA Magnetic & Electronic Low Voltage loads, ¼ Motor loads, and 5A Resistive Loads
• Sensor detects movement within 30ft x 30ft area using 180° Field-of-View
• Adjustable Range sensitivity to fit various coverage areas
• LED Indicator light displays device status
• Optional ambient light override sensor prevents switching lights ON when there is ample natural sunlight
• Can be connected to a neutral wire or ground wire if no Neutral wire is present
• Adjustable delayed OFF time can be set for 1, 5, 10, or 20 minutes

Two Modes for Application

In Automatic-ON mode, the sensor will automatically turn on your connected loads when motion is detected within range. When the room is left vacant and motion is no longer detected after a set specified time, the switch will automatically turn off devices. The sensor covers up to 900 square feet (30ft x 30ft) with a 180-degree field of view, ensuring adequate coverage for even the largest rooms.

In Manual-ON mode, your devices will only turn on when the sensor’s button is pushed, but will still automatically turn off when no motion is detected after a set time to help you save energy.

Installation Details

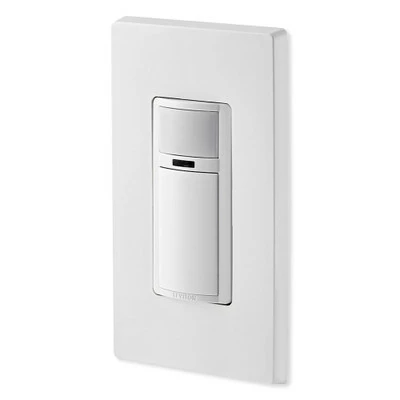

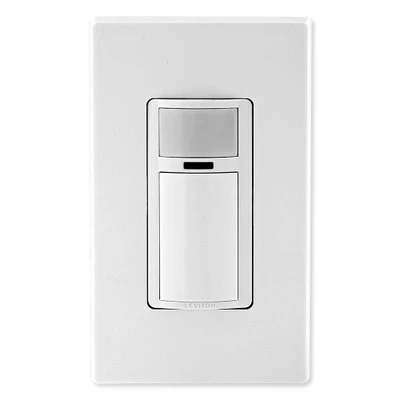

The Decora Motion Sensor In-Wall Switch’s minimal design blends in with virtually every decor. Each sensor switch comes with a white faceplate attached and two color change kits (Ivory and Light Almond).

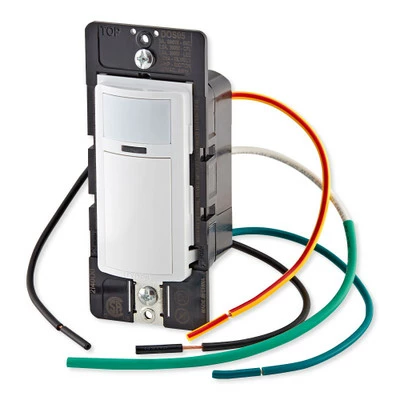

This Decora Motion Sensor In-Wall Switch fits in a standard wallbox and replaces a single-pole or 3-way wall switch. The sensor has screw terminals for easy installation and does not require a neutral wire for connection. The switch can be connected to a neutral wire or ground wire.

Contents

• Decora In-Wall Motion Sensor Switch
• Light Almond Faceplate
• Ivory Faceplate

Notes

• Ground or neutral wiring are required for installation.
• Wallplate sold separately.
• Requires a Phillips screwdriver, Electrical tape, cutters, and pliers for installation.
