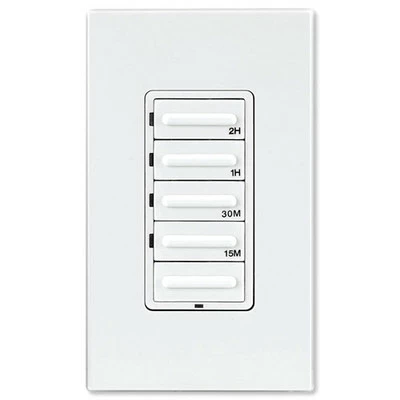

Leviton Decora Preset Countdown Timer Wall Switch (1/4, 1/2, 1, 2 Hr)

Ideal For Heat Lamps, Hot Tubs, Exhaust/Attic Fans

Save energy by putting a switched light or appliance on a timer at your convenience with the Leviton Decora Preset Countdown Timer Switch (2 Hour), which can replace a standard wall switch. With four preset buttons (and an Off button), the Timer Switch gives you four different countdown options when turning the load On. This 2-hour model counts down from 15 minutes, 30 minutes, 1 hour or 2 hours.

As soon as your selected time runs out, the timer automatically turns the load Off. You can also override the timer anytime. To extend the load’s On time, simply press and hold any timer button. To turn the load Off manually, press the Off button.

• Choose from 4 countdown times with 4 preset buttons
• 2-hour model counts down from 15Min, 30Min, 1Hr or 2Hrs
• Press and hold timer button to extend On time
• Replaces a standard wall switch (neutral required)
• Suitable for single or 3-way applications

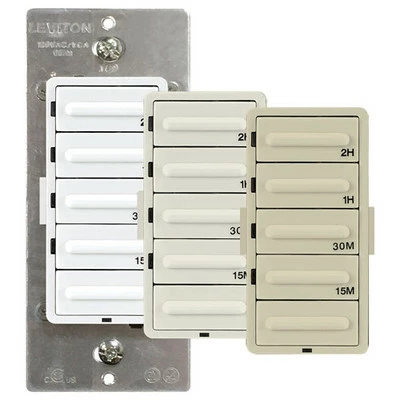

White faceplate installed. Light Almond and Ivory color change kits included.

The Timer indicates how much time is left through LEDs alongside each button. When you choose a countdown time, the LED next to that button lights up, as well as any LEDs below it. As time passes, the lights will go out. For example, if you press the 1 Hour button, the three LEDs next to the 15Min, 30Min, and 1Hr buttons will light up. After 30 minutes pass, the 1Hr LED will go out, while the 30Min and 15Min LEDs remain lit.

Contents

• Preset Countdown Timer Switch, 2 Hour
• White Faceplate
• Ivory Faceplate
• Light Almond Faceplate

Notes

• Neutral wire required.
• Wallplate not included.

Leviton Preset Timer Switches

The Leviton Decora Timer Switches offer advanced features, superior accuracy and contemporary aesthetics. Their robust selection provides convenient timed control of lighting and motor loads in homes, offices, schools, hotel rooms and other small commercial applications. An easy upgrade, automatic timers help reduce energy costs, improve security and add convenience. Homeowners can set lights to turn on and off for a lived-in look while they are away, or automate control of heat lamps, pool pumps or bathroom fans. Leviton’s versatile selection includes fully programmable and preset timers in popular styles and colors. All are backed by Leviton’s long history of quality and reliability.
