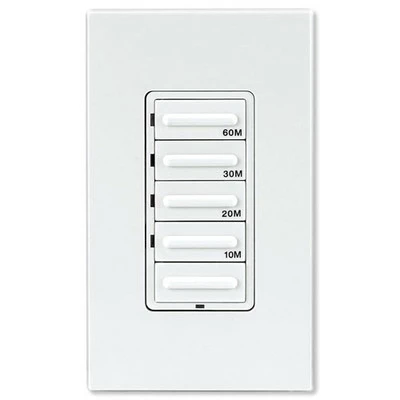

Leviton Decora Preset Countdown Timer Wall Switch (10, 20, 30, 60 Min)

Ideal For Heat Lamps, Hot Tubs, Exhaust/Attic Fans

Conserve energy by making sure your switched light or appliance doesn’t stay On for longer than an hour with the Leviton Decora Preset Countdown Timer Switch (60 Minute). This in-wall timer replaces a standard switch and has four preset timer buttons (and an Off button) to let you conveniently put the connected load on an auto-Off timer anytime you turn it On. The Timer Switch gives you four different countdown options when turning the load On. This 60-minute model counts down from 10, 20, 30, or 60 minutes.

As soon as your selected time runs out, the timer automatically turns the load Off. You can also override the timer anytime. To extend the load’s On time, simply press and hold any timer button. To turn the load Off manually, press the Off button.

• Choose from 4 countdown times with 4 preset buttons
• 60-minute model counts down from 10, 20, 30, or 60 minutes
• Press and hold timer button to extend On time
• Replaces a standard wall switch (neutral required)
• Suitable for single or 3-way applications

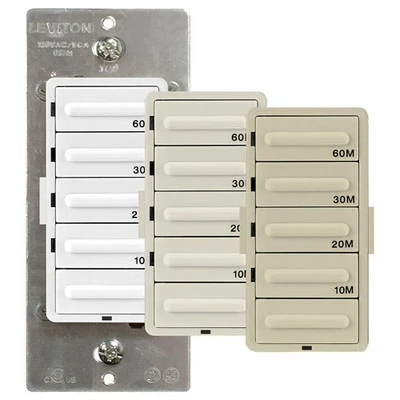

White faceplate installed. Light Almond and Ivory color change kits included.

The Timer indicates how much time is left through LEDs alongside each button. When you choose a countdown time, the LED next to that button lights up, as well as any LEDs below it. As time passes, the lights will go out. For example, if you press the 30Min button, the three LEDs next to the 10Min, 20Min, and 30Min buttons will light up. After 10 minutes pass, the 30Min LED will go out, while the 20Min and 10Min LEDs remain lit.

Contents

• Preset Countdown Timer Switch, 60 Minute
• White Faceplate
• Ivory Faceplate
• Light Almond Faceplate

NOTE: Neutral wire required.

Leviton Preset Timer Switches

The Leviton Decora Timer Switches offer advanced features, superior accuracy and contemporary aesthetics. Their robust selection provides convenient timed control of lighting and motor loads in homes, offices, schools, hotel rooms and other small commercial applications. An easy upgrade, automatic timers help reduce energy costs, improve security and add convenience. Homeowners can set lights to turn on and off for a lived-in look while they are away, or automate control of heat lamps, pool pumps or bathroom fans. Leviton’s versatile selection includes fully programmable and preset timers in popular styles and colors. All are backed by Leviton’s long history of quality and reliability.
