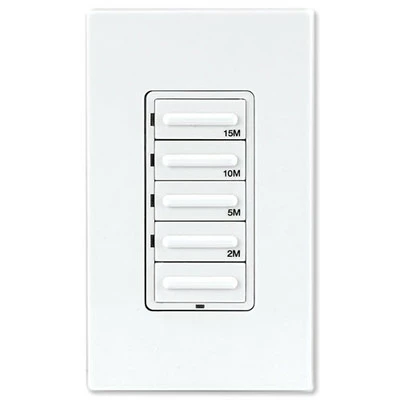

Leviton Decora Preset Countdown Timer Wall Switch (2, 5, 10, 15 Min)

Ideal For Heat Lamps, Hot Tubs, Exhaust/Attic Fans

Don’t let your switched light or appliance stay On for longer than 15 minutes. Put it on a timer with the Leviton Decora Preset Countdown Timer Switch (15 Minute). By replacing your standard switch with the Leviton Decora switch, you can tell the connected load to turn Off automatically when the countdown ends. With four preset buttons (and an Off button), the Timer Switch gives you four different countdown options when turning the load On. This 15-minute timer switch counts down from 2, 5, 10, or 15 minutes.

As soon as your selected time runs out, the 15-minute timer switch automatically turns the load Off. You can also override the timer anytime. To extend the load’s On time, simply press and hold any timer button. To turn the load Off manually, press the Off button.

• Choose from 4 countdown times with 4 preset buttons
• 15-minute model counts down from 2, 5, 10, or 15 minutes
• Press and hold timer button to extend On time
• Replaces a standard wall switch (neutral required)
• Suitable for single or 3-way applications

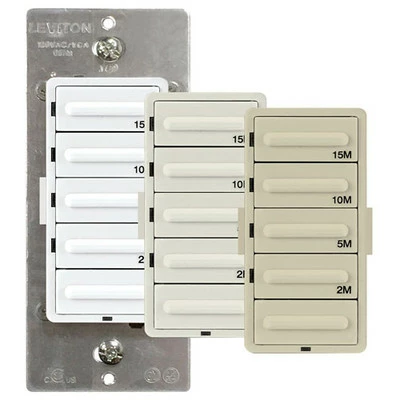

White faceplate installed. Light Almond and Ivory color change kits included.

The 15-minute timer switch indicates how much time is left through LEDs alongside each button. When you choose a countdown time, the LED next to that button lights up, as well as any LEDs below it. As time passes, the lights will go out. For example, if you press the 10Min button, the three LEDs next to the 2Min, 5Min, and 10Min buttons will light up. After 5 minutes pass, the 10Min LED will go out, while the 5Min and 2Min LEDs remain lit.

Contents

• Preset Countdown Timer Switch, 15 Minute
• White Faceplate
• Ivory Faceplate
• Light Almond Faceplate

NOTE: Neutral wire required.

Leviton Preset Timer Switches

The Leviton Decora Timer Switches offer advanced features, superior accuracy and contemporary aesthetics. Their robust selection provides convenient timed control of lighting and motor loads in homes, offices, schools, hotel rooms and other small commercial applications. An easy upgrade, automatic timers help reduce energy costs, improve security and add convenience. Homeowners can set lights to turn on and off for a lived-in look while they are away, or automate control of heat lamps, pool pumps or bathroom fans. Leviton’s versatile selection includes fully programmable and preset timers in popular styles and colors. All are backed by Leviton’s long history of quality and reliability.
