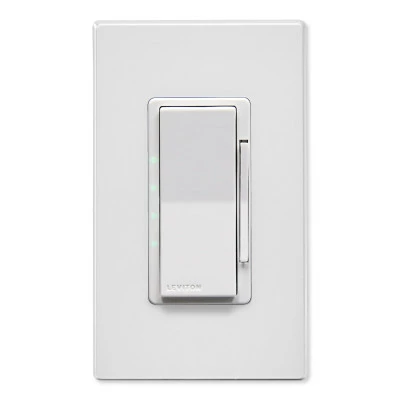

Leviton Decora Smart Z-Wave Plus V2 Fan Speed Controller, Gen7

Ceiling Fan Switch With Z-Wave 700 Control

Add your ceiling fan to your smart home network with the Leviton Decora Smart Z-Wave Plus v2 Fan Speed Controller, Gen7. This Z-Wave 700 4-speed fan wall switch controls On/Off and 4 speed settings for 120VAC fans up to 1.5 Amps. The main paddle rocker switch controls On/Off functions while the side vertical bar to the right of the rocker controls the fan speed. Settings are chosen at the switch or through a compatible Z-Wave app or home controller. The switch also features built-in scheduling so you can control the fan at specific times of the day, and at sunrise or sunset.

• Quiet rocker switch sets 4 speeds for a ceiling fan: Max, High, Medium, Low, and Off
• Vanishing LEDs on the left side of the switch indicate current and target fan speeds
• Compatible with pull chain ceiling fans without electronic control
• Control via Z-Wave technology or locally at the switch
• Z-Wave 700 Series Chipset includes S2 security and SmartStart provide easy inclusion into automation networks and secure operation
• IFTTT compatible with third-party smart home devices
• Multi-way control (3-way+) using up to 4 remote units (DD00R-DLZ, sold separately) or DZ6HD for control over ceiling fan light kits
• Compatible with Decora style wall plates

Control connected loads and lights using a Z-Wave compatible app or network controller. Simplify control of the residence – schedule lights and connected loads to turn on/off at specific times or based on sunrise/sunset, easily group smart devices into rooms, and create scenes to activate multiple lights at once. This switch is voice control compatible with both Amazon Alexa and Google Assistant.

Installation Details

The Fan Speed Controller mounts into a standard 1-gang box and uses a 3-wire connection. A neutral wire is needed for installation. A traveler wire connection is available for 3-way+ applications.

Z-Wave 700 Series / Z-Wave Plus v2 Certification

Z-Wave 700 is an upgraded Z-Wave certification program to help you identify products that take advantage of the latest Z-Wave hardware platform, also known as 700 Series, Gen7 Z-Wave, or Z-Wave Plus v2. Z-Wave 700 compatible devices include extended wireless range up to 2600 ft/800 m, three layers of encryption, faster operation, and longer battery life.

Contents

• Leviton Decora Smart Z-Wave Plus v2 Fan Speed Controller, Gen7
• Single Gang Screwless Wallplate (White)
• Manual

NOTE: For use with one or more ceiling paddle fans with split-capacitor or shaded pole motors, not to exceed a total of 1.5A.
