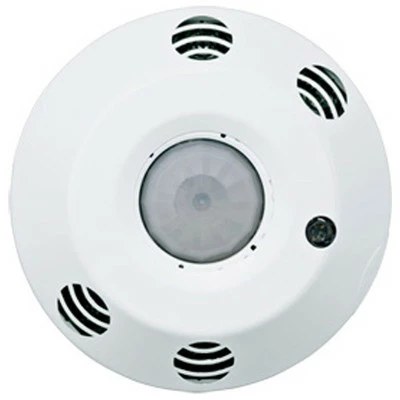

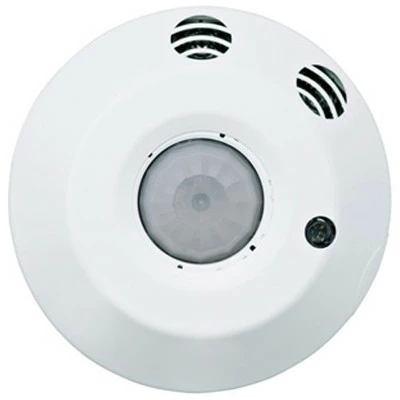

Leviton ODC Multi-Technology Ceiling-Mount Occupancy Sensor

Automatic Lighting With Daylight Harvesting

Automate your lighting without risking wasted energy by using the Leviton ODC Multi-Technology Ceiling-Mount Occupancy Sensor. When lights turn ON/OFF according to motion detection, they are sometimes left on for too long due to false detections. This sensor’s multi-technology motion detection overcomes that challenge with advanced false alarm immunity.

• Motion detection turns lights ON
• Lights turn OFF when room is vacant
• Advanced false alarm immunity
• Presentation Mode provides manual control
• Daylight harvesting capabilities
• Suitable for new construction or retrofit

Available Detection Ranges (Sq. Ft.): 500, 1,000, 2,000

Leviton’s series of ODC occupancy sensors feature daylight harvesting capabilities to help you further reduce energy consumption. When daylight harvesting is integrated into your lighting control system, the sensor can adjust wired lighting according to natural daylight levels. When daylight is abundant, lights stay off. When daylight is scarce, lights turn on! And for special occasions, the sensor includes “Presentation Mode”, which allows you to turn lights OFF manually and keep them OFF even while the room is occupied.

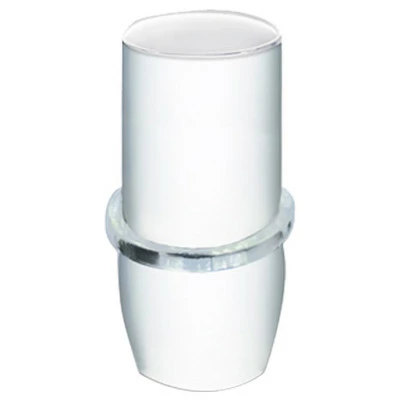

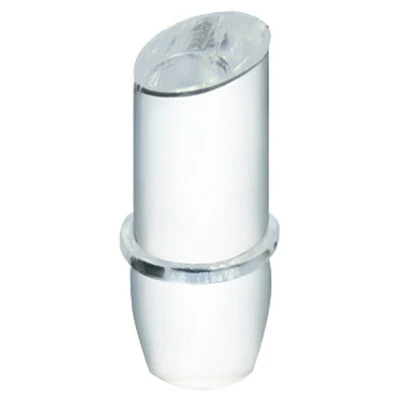

The Leviton ODC Multi-Technology Ceiling-Mount Occupancy Sensor includes an angled light pipe and flat light pipe for open loop and closed loop daylight harvesting applications. The sensor features adjustable daylight design levels: Normal (OFF), Manual (ON/OFF) and Auto Calibration. Its photocell provides Auto-Calibration (Automatic Daylight Calibration) to intelligently measure light levels and determine optimal daylight design levels for closed loop applications.

Multi-Technology Motion Detection

Multi-technology motion detectors utilize both PIR and ultrasonic technologies for advanced false alarm immunity. Passive infrared (PIR) motion sensing is the most common form of motion detection technology. The sensor receives infrared (IR) signals to detect distortion of the infrared area and identify movement by a heat source. Ultrasonic (doppler shift) motion sensing, in contrast, works like radar by sending out high-frequency sound waves and detecting how fast those waves bounce back to the sensor.

Multi-technology motion detectors are best suited to enclosed spaces where occupants show only low levels of motion (classroom, conference room, etc.). These motion detectors are not well-suited to environments with high air flow levels, such as a warehouse.

Advanced Energy-Saving Features

The Leviton ODC Multi-Technology Ceiling-Mount Occupancy Sensor features four key automated functions that maximize lighting efficiency:

1. Delayed OFF Timer: The sensor will turn lights OFF if no motion is detected after a specified time. Choose a time delay of 30 seconds, or 5, 10, 20, or 30 minutes.
2. Auto-Adapting: Using microprocessor-based technology, the sensor continually analyzes occupancy pattern of use and adjusts its time delay and sensitivity accordingly.
3. Walk-Through: After only momentary occupancy, the sensor knows not to leave the lights ON for an extended period of time.
4. False Detection Timer: Exactly 31 minutes after the lights are turned ON, the sensor scans for motion and shuts lights off, preventing false triggers from HVAC systems.

In the event of a power outage, time delay and other settings are saved. The sensor will return to its last known state when power is restored.

Installation Details

The occupancy sensor is compatible with incandescent lamps, electronic and magnetic ballasts, electronic and magnetic low-voltage transformers, and fans. It features H.I.S. (High Inrush Stability) technology designed to handle high inrush electronic ballast loads. No minimum load is required. The sensor’s mechanically held 10A latching relay ensures reliable operation for any load type and reduces energy consumption better than electronically held relays.

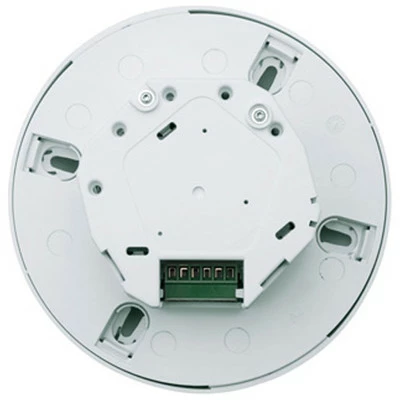

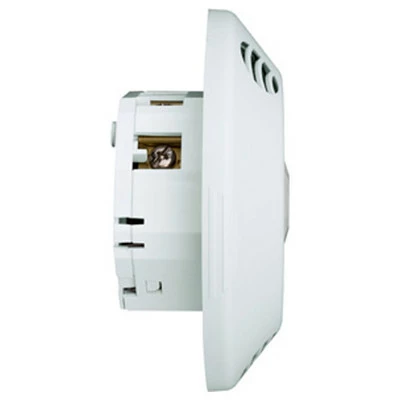

• Installs into “j” boxes with Leviton screw guides, coasters and terminal blocks
• Front cover snaps on/off for ease of installation
• Mounts to a standard 4″ x 4″ square or octagon electrical box

Because this line voltage vacancy sensor is self-contained, there is no need for an external power pack or vacancy sensor wiring.

Contents

• Occupancy Sensor
• Mid-Range Lens
• 360° Perforated Mask
• Mounting Plate (4″ x 4″)
• Emergency Label
• Low Voltage Connector
• (2) #6-32 x 1-1/2″ Screws
• Light Pipes
• Half Mask
• Tubing Barrier
