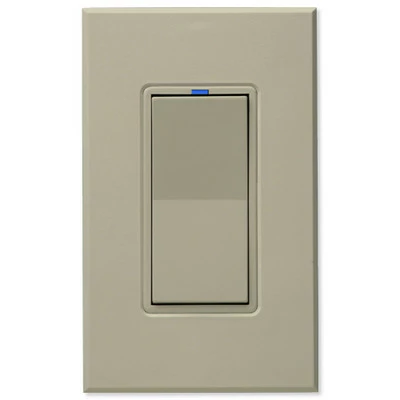

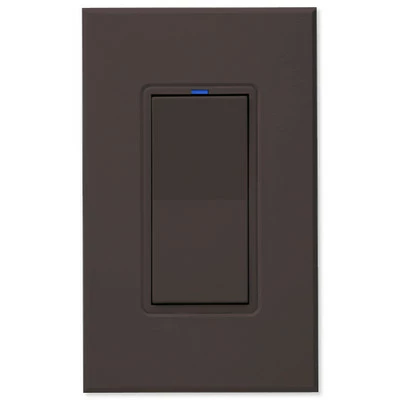

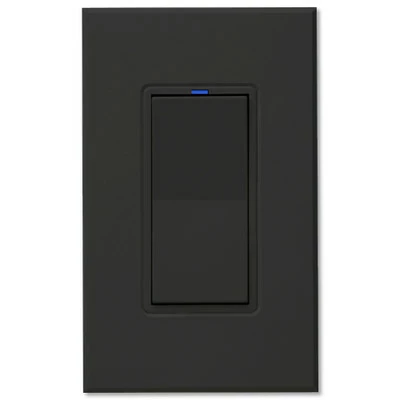

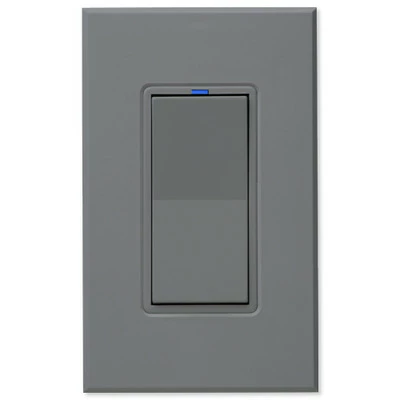

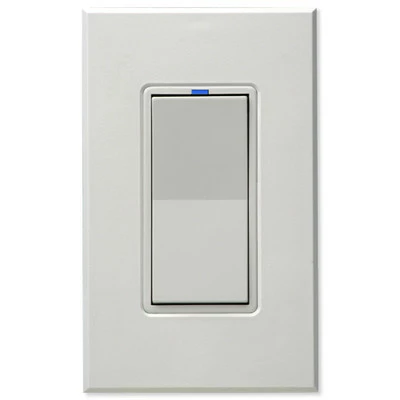

PCS HAI Wall Switch Dimmer, 600W/5A

Dim/Brighten Control For Any Type Of Light

Replace your standard lighting switches with UPB compatible dimmer switches with the PCS HAI UPB Wall Switch Dimmer, 600W/5A. This UPB dimmer switch can control dimmable light sources, including LED lights, CFL lights, fluorescent lights, inductive loads, incandescent lights and halogen lights.

• Replaces an existing wall switch to control dimmable light fixtures (up to 600W)
• Issues On/Off or Dim/Brighten commands with Single Tap/Double Tap or Hold/Release commands
• LED status light indicates On/Off status of connected lights
• Auto-Off Timer: Choose a max amount of time the light stays on (1 to 240 minutes)
• Air-Gap Switch Lever allows for safe switch installment and light bulb replacement
• Capable of working with up to 2 auxiliary switches for multi-way lighting applications

These switches offer smoother dimming throughout the light’s range, and an adjustable minimum dimming level to reduce drop-off and prevent flickering. A multi-color (Blue, Magenta, Red or Off) LED on top of the rocker guides you through the dark.

How It Works

Tapping the rocker switch turns lights on/off, while holding it down dims/brighten lights. Separate brightness levels (between 0 to 100 percent) are chosen for single-tap and double-tap events. Sixteen selectable fade rates (instant-on to one hour) give you absolute flexibility.

Compatible With Scene Lighting

Each switch may become a member of 16 individual scenes, 250 different scenes per system. Switches can store a pre-set lights-on level and fade rate for each scene, allowing you to install a sophisticated lighting system at a fraction of typical costs.

PulseWorx Lighting Control System

These switches are designed to be an integral part of a complete PulseWorx Lighting Control System. Like all PulseWorx devices, the Dimmer Wall Switches use UPB powerline communication technology to reliably communicate with other UPB-compatible devices over your existing electrical wires. No new wiring is required, making PulseWorx perfect for retrofit applications. When initial configuration is complete, a single push of a button is all you need to simultaneously activate any group of lights (or virtually anything else that connects to AC power wiring) throughout your house.

Contents

• Wall Switch Dimmer

NOTE: Wallplate not included.

UPB PulseWorx Lighting Control System

An integral part of a complete PulseWorx Lighting Control System, this device uses the patented UPB powerline communication technology (invented by PCS) to reliably communicate with any other UPB-compatible devices over the existing house electrical wires. No new wires are necessary, thus making PulseWorx perfect for retrofit situations. When initial configuration is complete, a single push of a button is all you need to activate any group of lights (or virtually anything else that connects to AC power wiring) throughout the house simultaneously.
