Simply Automated UPB Computer Interface Module

A Required Module To Program Your UPB Automation System

Simply Automated’s Computer Interface Modules (UMC series) are plug-in devices designed to convert computer signals into highly-reliable, Universal Powerline Bus (UPB) signals. They provide a bridge between the PC/controller to the powerline via the module’s plug-in AC connection. This enables computer-based configuration and control of lighting scenes, switches, modules and other UPB devices, over the powerline.

UPB devices such as switches, multi-button controllers and schedulers are easily integrated in to a new home or can replace switches and timers in an existing home. UPB technology requires no new or special wiring, it provides a flexible, low-costs alternative to hardwired or RF home lighting and automation strategies.

Two Options

• The UMC-USB model is ideal for an installer configuring any UPB devices with a laptop personal computer using UPStart software, since it plugs in to the popular USB port. However, it is not recommended for connection of home automation controllers.
• The UMC-DB9 model is ideal for controller applications, since it uses the highly reliable RS-232C serial interface – common to most desktop PCs, home automation controllers and alarm panels. The UMC-DB9 can also be used to configure any UPB device.

Installation of either UMC model is simple. The module is plugged into a standard 120VAC outlet. The serial or USB port of the computer or controller is connected to the module using the standard cable provided. With the appropriate software, such as UPStart, the computer or controller can then be used to configure and control UPB devices in the home.

Advantages

Simple plug-in installation

No new wires

• Transmits and receives UPB lighting scenes and configuration commands over existing AC power lines
• Controlled by any computer, alarm panel or home automation controller with a serial or USB port and UPB software driver

UPB technology delivers…

• Exceptional reliability and noise immunity
• Lowest installed cost compared to hardwired and RF solutions
• No interference between adjacent homes

Easily configure or reconfigure UPB devices with UPStart (PC) software

• Makes changing lighting scenes quick and easy

Product Features

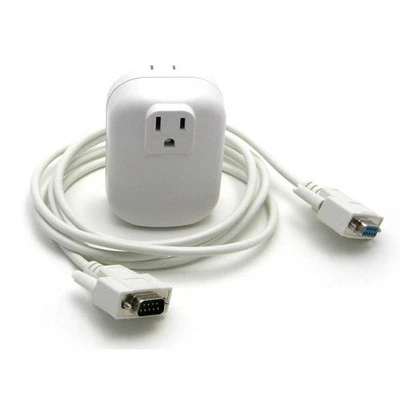

Serial RS-232C Communication model: UMC-DB9-W

• Standard DB9 (female) connector and 6’ cable
• For device and scene configuration
• For home automation controller applications
• 3-conductor power connection includes safety ground
• Always-on convenience outlet

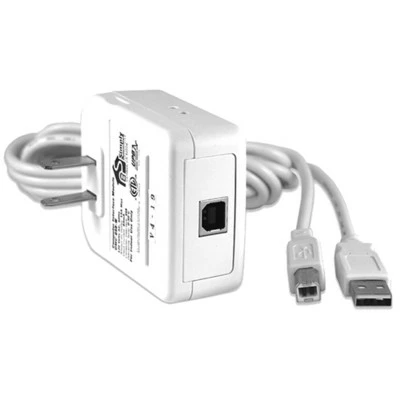

USB Communication model: UMC-USB-W

• Standard USB connector and 6’ cable
• For device and scene configuration only
• Not for home automation controller applications

UPB Switches & In-Wall Controllers From Simply Automated

Simply Automated, Inc (SAI) provides an ultra-reliable powerline-based control technology that is as easy to install as it is to use. Universal Powerline Bus (UPB) technology significantly improves the reliability of control applications in the home. Through diligent testing, field trials, and residential installations, UPB has been proven to be greater than 99.9% reliable, so you can install it and forget about it!
