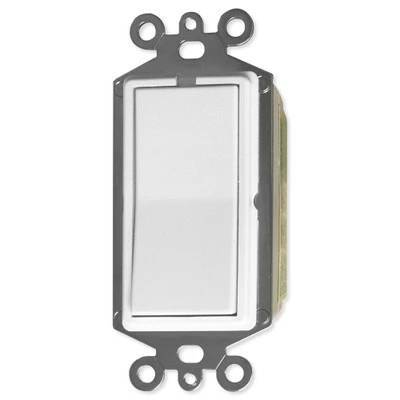

X10 Appliance Wall Switch With Silent Relay

Rocker-Style On/Off Switch

As an upgraded replacement for the original model XPS3, the X10 Appliance Wall Switch with Silent Relay (model XPS4) replaces a standard wall switch to add X10 on/off control to a wired load with the improvement of quieter operation using integrated Automatic Gain Control (AGC), which minimizes line noise. The switch supports most 120V appliances and lights up 1800W, including incandescents, halogens, LEDs, and fluorescents.

• Responds to X10 On/Off and All Lights On commands
• Supports most 120V appliances and lights up 1800W
• Compatible with incandescents, halogens, LEDs, fluorescents, etc.
• Automatic Gain Control (AGC) minimizes line noise
• Built-in white nightlight LED guides you through the dark
• Mounts in a single-gang box, faceplates included

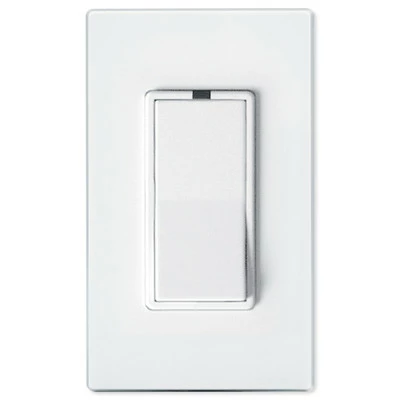

White faceplate installed. Ivory color change kit included.

The Decorative-style rocker switch provides local operation like a standard rocker switch. Press the top of the rocker to turn on the connected load, and press the bottom to turn it off. For 3-way control, you can add a compatible X10 auxiliary switch (sold separately).

The X10 Appliance Wall Switch with Silent Relay is an X10 Wired-In Receiver

A basic X10 system includes a Transmitter and a Receiver – both sold separately. Transmitters are control devices that send X10 signals through your home’s electrical wiring to X10 Receivers. When a Receiver receives a command, it responds by turning a light, appliance or other electrical device On or Off, and sometimes Dim or Bright.

NOTE: Wallplate not included. Neutral wire required.

X10 Makes It So Easy To Automate Your Home!

X10 began manufacturing home automation and security products in the late 70s, establishing X10 as a smart home standard. X10 utilizes powerline technology to transmit control signals anywhere in your house over your existing electrical lines, so you can control lights and appliances throughout your home without running new wires! Have complete, automated control over lights and appliances from anywhere in your home with X10.
