X10 PRO Dimmer Wall Switch, 3-Way

Provides Local & X10 Control

The X10 PRO Dimmer Wall Switch, 3-Way, replaces an existing 3-way wall switch to provide both local and X10 control of a connected light. This complete wire-in kit includes one master switch and one companion switch, providing both local and remote control for the connected light. It controls incandescent lights rated between 60W and 500W and has a power rating of 120VAC, 60Hz, Max 1/10 Amp. It’s ideal for adding automation control to indoor/outdoor lights controlled by two or more switches (hallway, patio, stairway, front porch, and more). It also provides dimming functionality to a light when used with any X10 transmitter that supports DIM/BRIGHT control.

• Provides local and X10 remote control
• Rated for loads up to 60W and 500W
• Can dim the light from any X10 transmitter with DIM/BRIGHT control
• Compatible with incandescent bulbs only
• Power cutoff switch for safe bulb changing

The X10 Dimmable Wall Switch Kit is a X10 Wired-In Receiver

A basic X10 system includes a Transmitter and a Receiver ‐ both sold separately. Transmitters are control devices that send X10 signals through your home’s electrical wiring to X10 Receivers. When a Receiver receives a command, it responds by turning a light, appliance or other electrical device On or Off, and sometimes Dim or Bright.

Contents

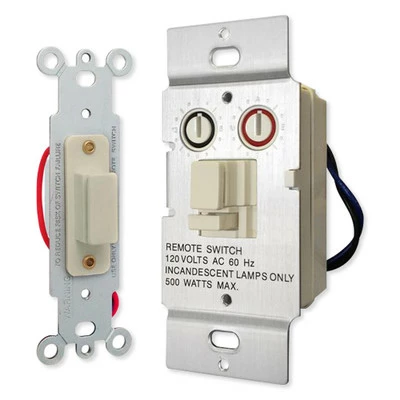

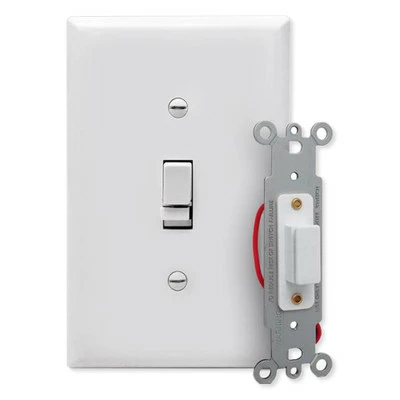

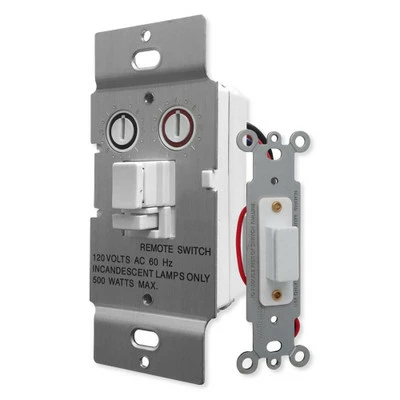

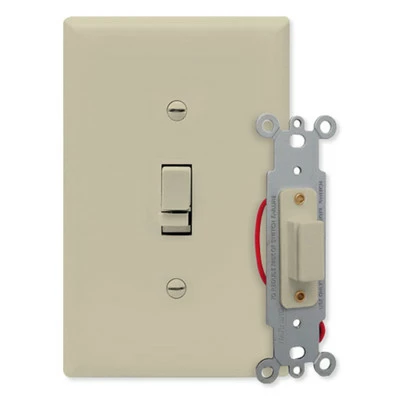

• Master Switch
• Companion Switch
• Instructions

Notes

• Do not use appliances, motors, low voltage lights or fluorescent lights.
• Only compatible with incandescent bulbs.

It’s So Easy To Automate Your Home!

X10 started manufacturing home automation and security products in the late 70s and has been one of the smart home standards since its inception. X10 utilized powerline language to transmit control signals anywhere in your house over your existing 110V electrical lines, so you can control lights and appliances throughout your home without running new wires! Simply add a controller (transmitter) at one electrical outlet and add another module (receiver) at any other outlet and you have remote control of that module. Choose from plug-in, wired-in and wireless models. This enables you to have the remote and automated control of lights and appliances from anywhere on your property. The convenience and security of controlling all your lights and appliances from anywhere in your house is simple and inexpensive.
